Hm-042 is a fanless industrial vision host equipped with Intel tiger Lake platform processor i3-1115g4. It has five Intel gigabit network ports, can support four GigE network ports industrial camera, and has four built-in constant current light sources
The HM-042 is a fanless industrial vision console powered by Intel Tiger Lake platform processor i3-1115G4.
It has five Intel Gigabit network ports, supports four GigE network ports industrial cameras, and has four built-in constant current source ports.
In addition, there are 16 GPIOs, 2 serial ports (one for RS485 and one for RS232), 2 USB2.0 and 2 USB3.0.
The HM-042 is camera-powered, and the IO interface uses a 6-pin push-pull self-locking connector for a reliable, easy and quick connection.
All interfaces are routed from one side, easy to install and saving space.
Provide a complete solution for AI deep learning visual inspection.
Installation:
Model number | HM-042 |
processor | Intel Tiger Lake Processor i3-1115G4 |
Operating system | Windows 10 64-bit, not activated |
Display interface | 1 x HDMI(TYPE-A): Supports a maximum of 4096x2160@30Hz |
Internal memory | 8GB |
store | 256 GB SSD |
Network interface | 5 * Intel I211-AT GBE LAN Chip(RJ45, 1000Mbps) |
Visual interface | 4 * industrial camera power supply and IO interface (CAM1~CAM4), power output 12V DC, power 2W ~ 5W 4 * constant current light source interface (L1 ~ L4), maximum output DC24V/15W, adjustable brightness 4 * Camera IO interface (OPT01~OPT04) |
Serial interface | 1 * RS485 1 * RS232 |
USB interface | 2 * USB3.0 2 * USB2.0 |
Other interface | 1 * Power button 1 * Reset button 2 * Status indicator 4 * input GPIO, optocoupler isolation, support PNP/NPN, voltage 5v ~ 24V DC 12 * output GPIO, optocoupler isolation, support PNP/NPN, voltage 5v ~ 24V DC |
temperature | Storage temperature: -10℃ ~ 75℃, operating temperature: 0℃ ~ 40℃ |
Power input | Direct currentDC 24V, φ2.5mm DC Jack with locking screw (M8*0.75) |

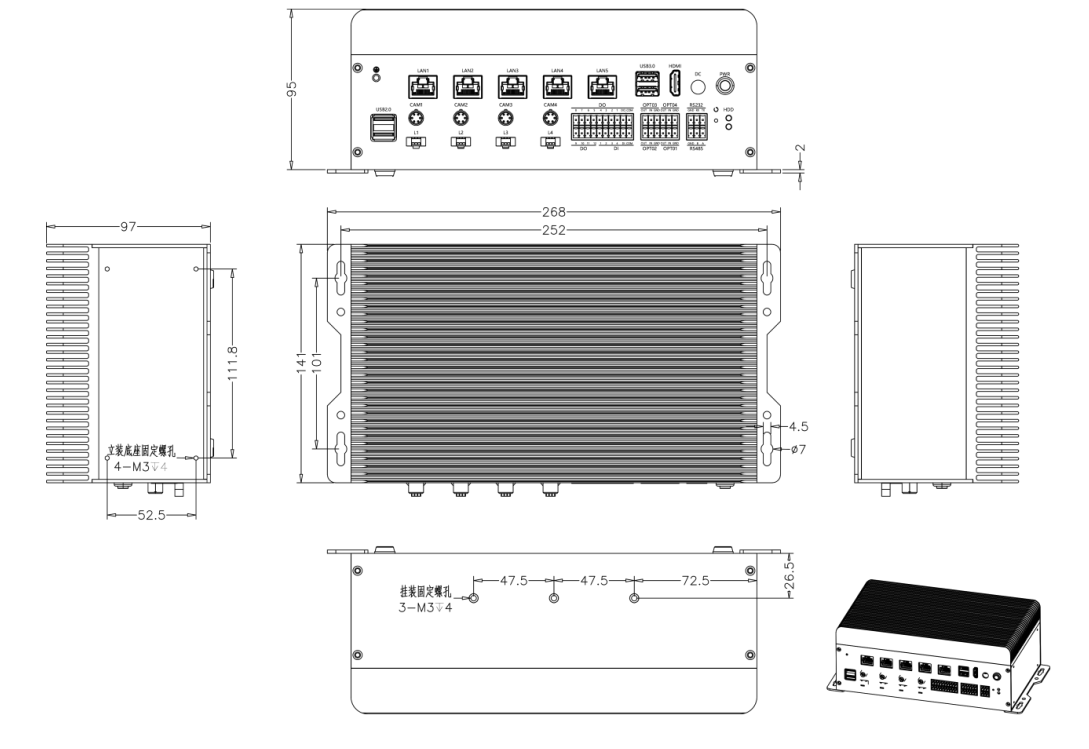

Apparent dimension | 268mm * 141mm * 97mm |
Net weight | about2.8 kg |
Heat dissipation mode | Large area aluminum heat dissipation |
Installation mode | Wall mount, Desktop installation |
authentication | CE |
Hm-042 is a fanless industrial vision host equipped with Intel tiger Lake platform processor i3-1115g4. It has five Intel gigabit network ports, can support four GigE network ports industrial camera, and has four built-in constant current light sources
