Embedded vision system HM-02S-Intelligent vision-Shenzhen Raindi Technology Co., Ltd

7-inch multi-point capacitive touch screen, built-in identification software, 60 frame rate;

With built-in 30W pixel analog camera, 200W pixel AHD camera;

Support one USB2.0, RS232/RS485 communication; Two light source control output;

Two input, two output, signal NPN type;

Easy to operate, stable performance;

Provide complete solutions for bearing visual inspection applications.


argument	Instructions
property
processor	ARM® quad-core Cortex-A53, 64-bit processor, clocked up to 1.3GHz
Internal memory	4G
store	32G
Graphics processor	ARM®MAli-T720MP2 GPU
Operating system	Android 5.1
External interface
Video output	supportIn addition to the 30W pixel analog camera, it also supports the 200W pixel AHD camera, which supports two camera interfaces at the same time
figure I/O	Two inputs, two outputs, signalNPN type
Light source interface	Two light sources control output
Network interface	There is no
USB interface	All the wayusb
Serial port	supportRS232/RS485 communication
Electrical characteristic
Power supply	DC 24V3A
Typical power consumption	30W
structure

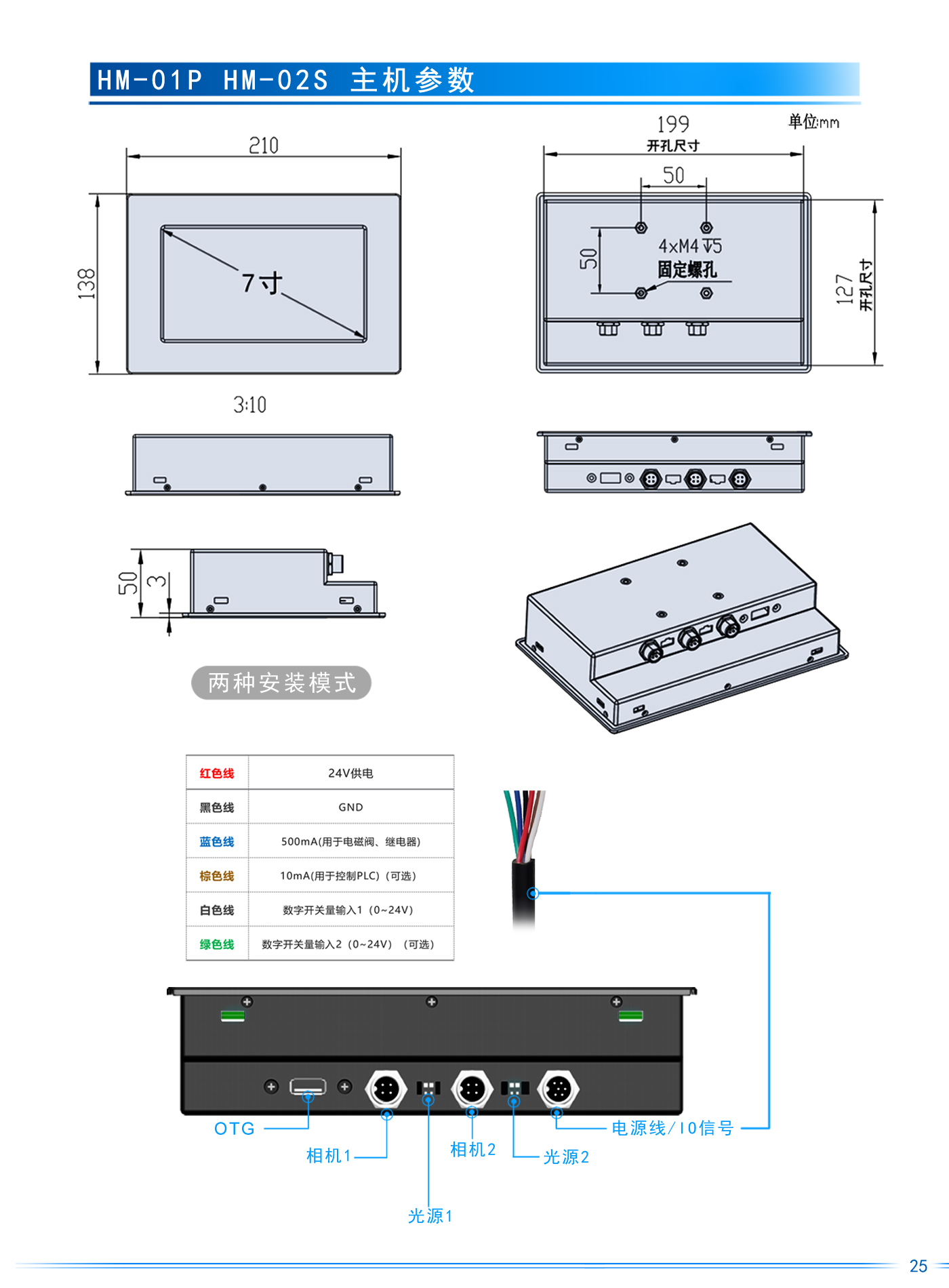

Overall dimension	21013850mm
weight	944g
temperature	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
humidness	20% to 80% RH non-condensing

Embedded vision system HM-02S
