7-inch touch screen with light source controller. With AV camera with Sony high-performance CCD chip built-in, the frame rate is 50FPS. It has high reliability and never drops the line. It can directly drive the solenoid valve with hm-bfm adapter, which is easy to operate.
The integrated embedded machine vision system is a highly innovative product from Raindrop.
7 inch touch screen with light controller. AV camera with built-in SONY high-performance CCD sensor chip, 50fps frame rate. With high reliability, never drop line, with Hui mu adapter (HM-BFM) can direct drive solenoid valve, easy to operate.
The preferred solution for feeding vibration disk visual inspection.
argument | Instructions |
property | |
processor | ARM® dual-core Cortex-A7, 32-bit processor, clocking up to 1.2GHz |
Internal memory | 2G |
store | 32G |
Graphics processor | Mali-400 GPU |
Operating system | Android 4.2 |
External interface | |
Video output | All the way30W pixel analog camera video cable interface |
figure I/O | Two inputs, two outputs, signalNPN type |
Light source interface | One light source control output |
Network interface | There is no |
USB interface | All the wayusb |
Serial port | There is no |
Electrical characteristic | |
Power supply | DC 24V3A |
Typical power consumption | 18W |
structure | |

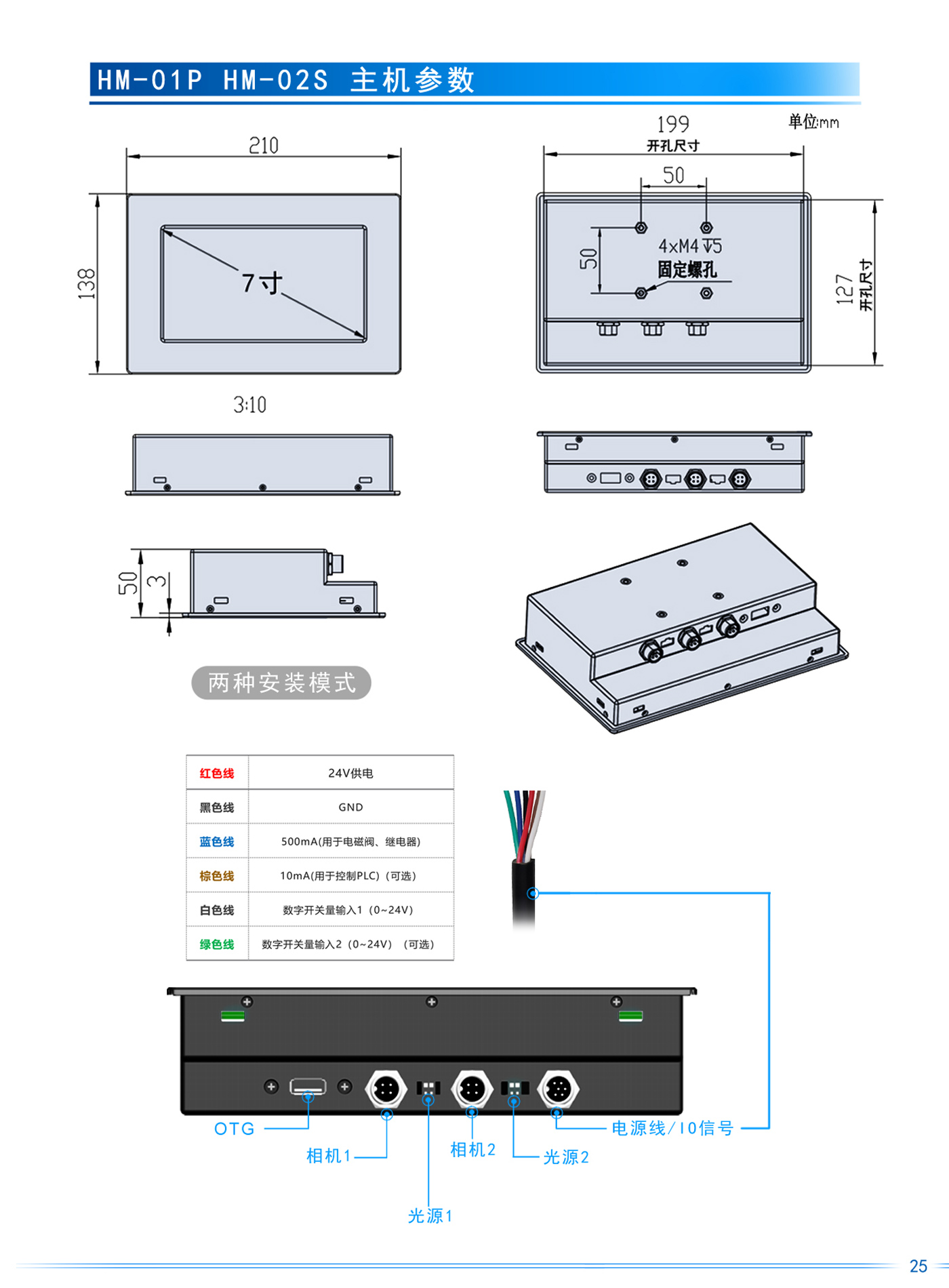

Overall dimension | 210*138*50mm |
weight | 833g |
temperature | Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃ |
humidness | 20% to 80% RH non-condensing |
Hm-042 is a fanless industrial vision host equipped with Intel tiger Lake platform processor i3-1115g4. It has five Intel gigabit network ports, can support four GigE network ports industrial camera, and has four built-in constant current light sources
Learn more >
13.3 \"1080P full HD multi-point capacitive touch screen, 10 core processor; Support two cameras, two light source controller; Support two Gigabit Ethernet, one USB2.0, one USB3.0;
Learn more >
7 inch 1080P full HD multi-point capacitive touch screen, support multi-channel camera, light source controller; Support Gigabit Ethernet, one USB2.0, one USB3.0; Easy to operate, stable performance,
Learn more >
